Hat Purlin Roll Forming Machine: High-Precision Forming for Modern Structural Demands
The hat purlin roll forming machine is engineered to produce a specialized steel profile that resembles the shape of a hat — a form that offers excellent structural advantages. Its unique cross-section allows it to evenly distribute loads, enhance bending resistance, and improve torsional strength. These properties make hat purlins ideal for wide-span structures, such as large-scale warehouses, stadiums, and modern infrastructure projects.
Produced through a standardized hot rolling process, hat purlins offer consistent specifications and dimensional accuracy. This reduces material waste while ensuring compatibility across different building scenarios. With its strength-to-weight ratio and ease of handling, hat purlin has become increasingly popular in prefabricated buildings and transportation-related structures.
Precision Forming with Multi-Stage Roller Calibration
At the core of the hat purlin roll forming machine is a multi-stage forming system, specifically designed to shape and calibrate the hat profile with high accuracy. The forming line is equipped with several sets of custom-designed rollers, each tuned to handle a specific stage of the shaping process. These rollers differ in contour, diameter, and surface finish based on their function in the line.
The forming process follows a “segmental forming, gradual calibration” principle:
Initial Forming Rollers: These rollers start shaping the flat steel strip into a basic hat-like profile. With gently curved surfaces, they begin to define the core geometry while minimizing internal material stress. The transition from web to flange starts here, setting the foundation for accurate angles.
Angle Calibration Rollers: As the material moves forward, dedicated rollers precisely adjust key angles — especially where the web meets vertical legs or horizontal flanges. These rollers are ground to fine tolerances and offer a high level of surface hardness. By applying even pressure, they keep angle deviations to a minimum, ensuring that the shape remains square and symmetrical.
Finishing Rollers: The final stage involves fine adjustment and surface smoothing. These rollers feature mirror-polished finishes and apply balanced pressure to flatten out any minor ripples or bumps. This ensures that the final hat purlin has sharp, clean angles and a smooth surface, ready for downstream processes like welding or coating.
Uniform Cross-Section, Smooth Surface, and Structural Efficiency

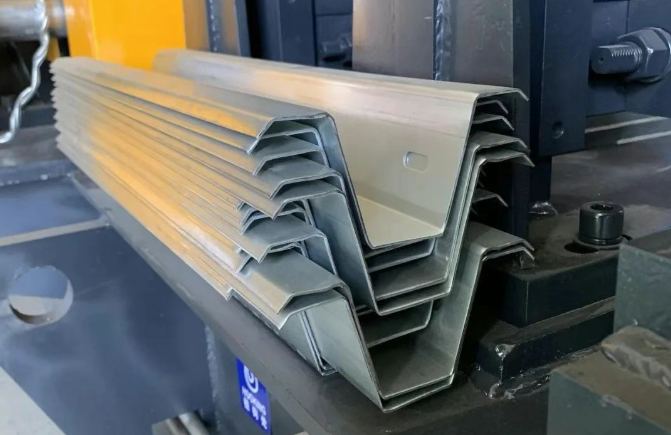

One of the standout features of hat purlins produced by this machine is their exceptional cross-sectional accuracy. After passing through multiple calibration stages, the final product shows minimal deviation between the web and flange angles. The surface is remarkably flat, free from common issues like waviness or localized bulging.
This precise profile not only improves the overall appearance but also contributes directly to structural performance. The hat-shaped design evenly distributes stress, making the purlin highly effective at resisting bending and twisting — essential for structural applications requiring long spans or heavy loads.
Additionally, the finished product is both strong and lightweight, making it easier to handle on-site. Its compatibility with standardized connection systems reduces the need for post-processing, while the clean finish eliminates the need for grinding or rework prior to installation.
Versatile Application Across Building and Infrastructure Projects
Hat purlins are widely used in various sectors, from industrial roofing systems and stadium wall supports to railway infrastructure and tunnel linings. Their ability to bear heavy loads while maintaining shape under stress makes them a dependable solution in projects that demand both performance and efficiency.
In prefabricated construction, these purlins offer clear advantages. Thanks to the uniformity delivered by the hat purlin roll forming machine, the components are ready to be integrated directly into modular frameworks. This streamlines the assembly process and significantly reduces on-site construction time. In addition, the smooth surface and consistent shape contribute to an overall cleaner and more professional final structure.
Standardized Production, Better Efficiency
One of the key strengths of the hat purlin roll forming machine lies in its ability to deliver consistent quality across every run. The hot roll forming process is tightly controlled, ensuring uniform thickness, shape, and finish with every batch. This level of precision not only improves compatibility with other parts but also reduces welding defects and paint adhesion issues during finishing.
By automating angle adjustments through its calibrated roller system, the machine eliminates the need for constant manual tuning — making it ideal for both small-scale projects and high-volume production lines.
