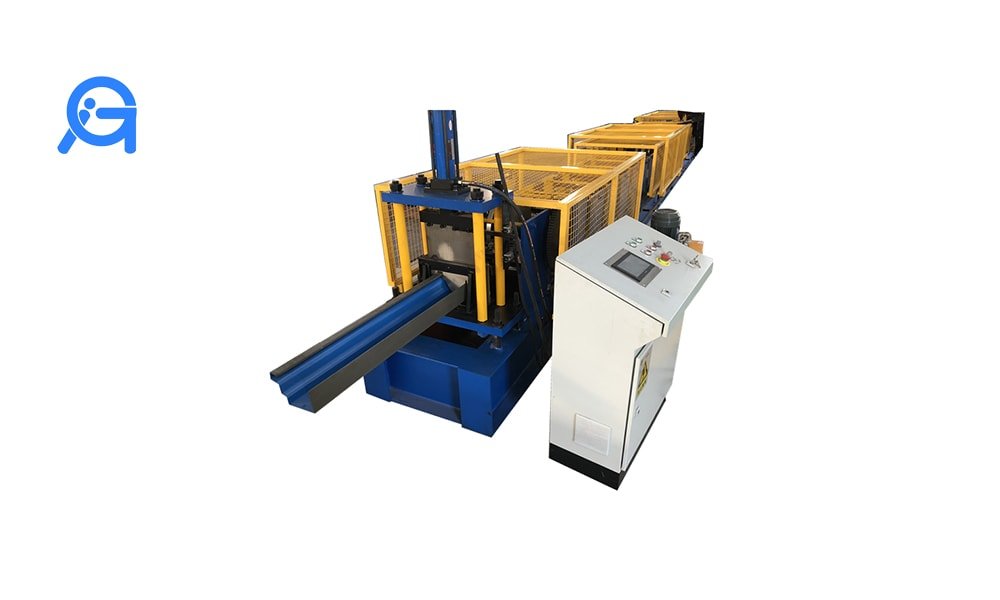

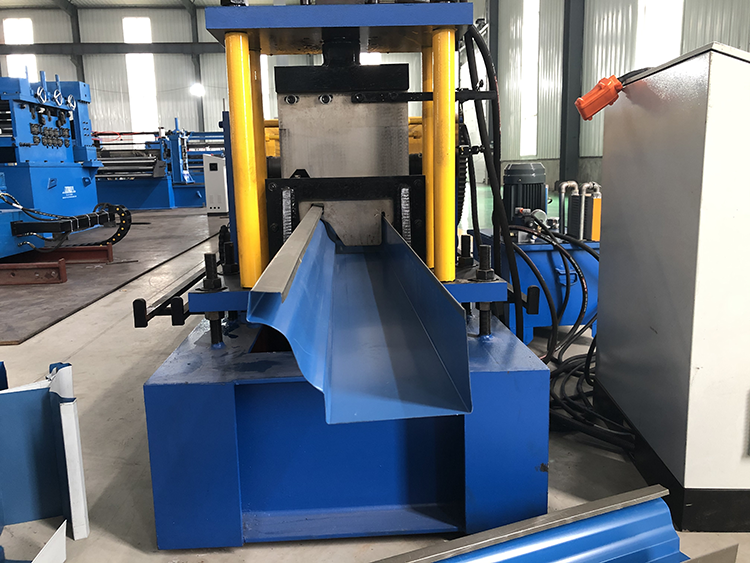

Downspout Making Machine
Downspout roll forming machine,also known as downpipe roll forming machine, downspout elbow machine, roof leader, or gutter downpipe machine.
Downspouts collect roof rainwater,which is part of the downspouts system and focuses on rainwater pipes laid below the ground.
Downspout Machine automatic working by Delta PLC, We produce Downspout Gutter Roll Forming Machine according to your requirements.
1.Working flow of Downspout roll forming machine
2.Technical specification
2.1 - Main roll forming machine weight: 7 tons
2.2 - Main roll forming machine dimension: 11500*1050*1500mm
2.3 - Machine color: Blue or green or as customized
2.4 - Work voltage: 220V/60Hz/3Phases
2.5 - Total power: 10 kW
2.6 - Feeding thickness: 0.4 -0.7 mm
2.7 - Material: Aluminum
