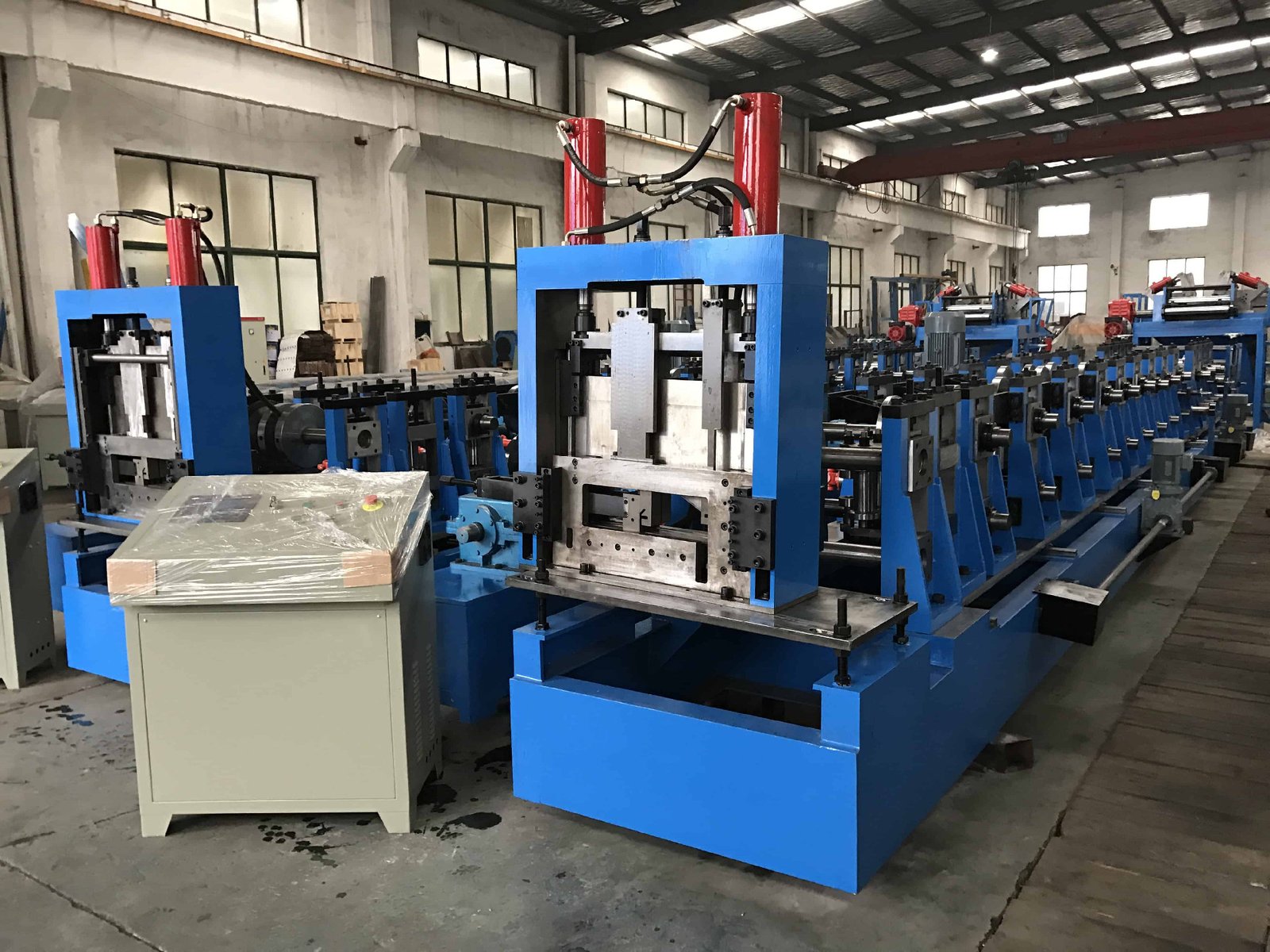

Modern Steel Construction:C Purlin Roll Forming Machine
In the modern industrial and construction landscape, C purlins have emerged as indispensable structural components. Their strength, versatility, and adaptability make them a preferred material in both large-scale infrastructure and smaller building projects. At the heart of their efficient production lies the C purlin roll forming machine—a high-performance, automated solution that transforms flat steel into precision-engineered purlin profiles.
Whether for steel-framed buildings, mechanical supports, or solar panel structures, the C purlin roll forming machine delivers consistent results with high output speed and minimal waste, making it a vital asset for manufacturers around the world.
What Are C Purlins?
C purlins are cold-formed steel sections with a cross-sectional shape resembling the letter “C.” Typically used as roof purlins, wall studs, and floor joists, C purlins support various loads and structural frames. The standard specifications of C purlins produced by roll forming machines range in:
Thickness: 1.5mm to 4mm
Web Width: 50mm to 400mm
Flange Height: 30mm to 100mm
These specifications can be customized based on the structural requirements of different projects, which is why the C purlin roll forming machine is designed to accommodate a wide range of dimensions with quick changeover capability.
Key Features of a High-Performance C Purlin Roll Forming Machine
Zhongtuo’s C purlin roll forming machines are engineered with advanced technology to ensure precision forming, stable operation, and intelligent automation. Key features include:
1. Adjustable Sizing System
Our machines support automatic width and height adjustment, enabling rapid transitions between different purlin sizes without manual intervention. This multi-size capability is ideal for clients handling various production specifications.
2. Hydraulic Decoiler
A heavy-duty hydraulic decoiler ensures smooth feeding of steel coils into the roll forming line. It supports high-tension materials and adjusts coil tension dynamically for optimal sheet flow.
3. High-Precision Rollers
The core forming section includes a series of precision-engineered rollers made from GCr15 steel, hardened and polished for long service life. These rollers progressively bend the steel sheet into its final C profile with exceptional accuracy.
4. Servo Motor Cutting System
Equipped with a flying cut-off system powered by a servo motor, the machine can cut purlins to exact lengths without stopping the line, boosting production efficiency and ensuring clean, burr-free edges.
5. PLC-Controlled Automation
An intuitive PLC system allows operators to input and store parameters, monitor production status in real-time, and run diagnostics. This ensures consistent output quality and reduces the risk of human error.
Customization and Surface Treatments
One of the most significant advantages of using a C purlin roll forming machine is the high degree of customization it offers. Steel producers can tailor:
Length and hole positions
Material types (galvanized, cold-rolled, etc.)
Surface treatments (zinc coating, paint, etc.)
These options are particularly useful in varying environments where corrosion resistance or aesthetic appeal is a consideration—such as coastal buildings, chemical plants, or modern architectural designs.
Role of C Purlins in Mechanical Systems
C purlins are not limited to structural applications. In mechanical systems, they serve as rigid supports for:
Chain Drive Systems
In long-distance mechanical transmission setups, chain drives require stable frameworks. C purlins provide the horizontal support needed to prevent sagging and vibration, ensuring smooth chain movement and operational continuity.
Gear Drive Systems
When gears are involved, accuracy is paramount. C purlins offer the rigidity to absorb radial and axial forces generated during gear rotation. This helps maintain gear alignment, reduces wear, and extends the service life of machines.
By integrating C purlins into machine frames and conveyor systems, factories benefit from reduced downtime, increased reliability, and better structural performance.
The Importance of Leveling in Purlin Production
Leveling is a critical step in producing high-quality C purlins. Steel sheets often develop bends or surface irregularities during processing and transport. A leveling unit within the roll forming machine ensures that the material is flat and straight before forming begins.
Benefits of leveling include:
Improved structural strength: Straight purlins distribute loads more evenly.
Better aesthetics: Smooth surfaces and clean lines elevate the visual appeal of steel structures.
Faster assembly: Straight components reduce alignment time on-site, speeding up installation.
Reduced labor cost: Precise dimensions minimize the need for manual correction during fitting.
By integrating automatic leveling into the forming line, the C purlin roll forming machine ensures that every section meets strict engineering tolerances.
