Boosting Efficiency and Quality with Trapezoidal Roll Forming Machine

The trapezoidal roll forming machine is one of the most widely used machines in the metal roofing industry. It is designed to shape steel coils into trapezoidal roof sheets through a series of rolling processes. These sheets are commonly galvanized and coated with colorful finishes, giving them both corrosion resistance and an attractive appearance. Unlike curved metal sheets, trapezoidal roofing sheets feature sharp, angled peaks and valleys, forming a distinctive step-like profile that adds strength to the sheet itself.

These machines are built to handle steel coils with widths ranging from 914mm to 1450mm and thicknesses between 0.3mm and 0.8mm, offering excellent flexibility for different roofing applications.

Modular Forming for Flexible Production

One of the standout features of a modern trapezoidal roll forming machine is its modular forming design. Unlike traditional integrated machines, the modular system divides the forming process into multiple functional units. Each module is responsible for a specific shaping task — such as pre-bending, edge folding, or final profiling. This setup allows operators to adjust individual module parameters like roller angle and pressure, making it much easier to produce trapezoidal panels with different wave heights, pitches, or thicknesses.

By distributing the forming load across separate units, the system minimizes stress on the sheet and prevents defects like wrinkling or cracking during forming. In addition, modular machines are much easier to maintain, as individual modules can be serviced or replaced without affecting the entire production line. This makes them especially suitable for custom orders or small-batch manufacturing where quick changeovers are necessary.

Pre-Coating Film for Surface Protection

To protect the surface of color-coated steel sheets during production, a film laminating device is installed at the feeding section of the trapezoidal roll forming machine. As the coil enters the machine, a protective film (usually PE or composite) is applied to the surface via pressure rollers. Since this step happens before any shaping, the film effectively prevents scratches, stains, or other damage during forming or transport.

The lamination unit includes a tension control system that adjusts pressure based on material thickness and film type. This ensures smooth application without bubbles or misalignment, preserving both surface quality and flatness. Especially for steel sheets used in visible roofing or wall cladding, this protection adds significant value by reducing rework and keeping the product clean from factory to jobsite.

Stable Archway Frame Structure

The trapezoidal roll forming machine adopts a heavy-duty archway frame, connected securely with industrial-grade bolts. This structure dramatically increases the overall rigidity of the machine, minimizing vibration and misalignment during high-speed operation. The frame is built to support continuous rolling pressure, ensuring sheet accuracy and consistent forming quality.

Thanks to this design, the machine can run at speeds of around 25 to 40 meters per minute, depending on the material and profile. The frame and speed work hand-in-hand — a more stable structure allows for faster processing without compromising on product precision. For manufacturers dealing with large-volume orders or tight delivery deadlines, this speed-performance balance is essential.

Servo Tracking Shearing for Non-Stop Cutting

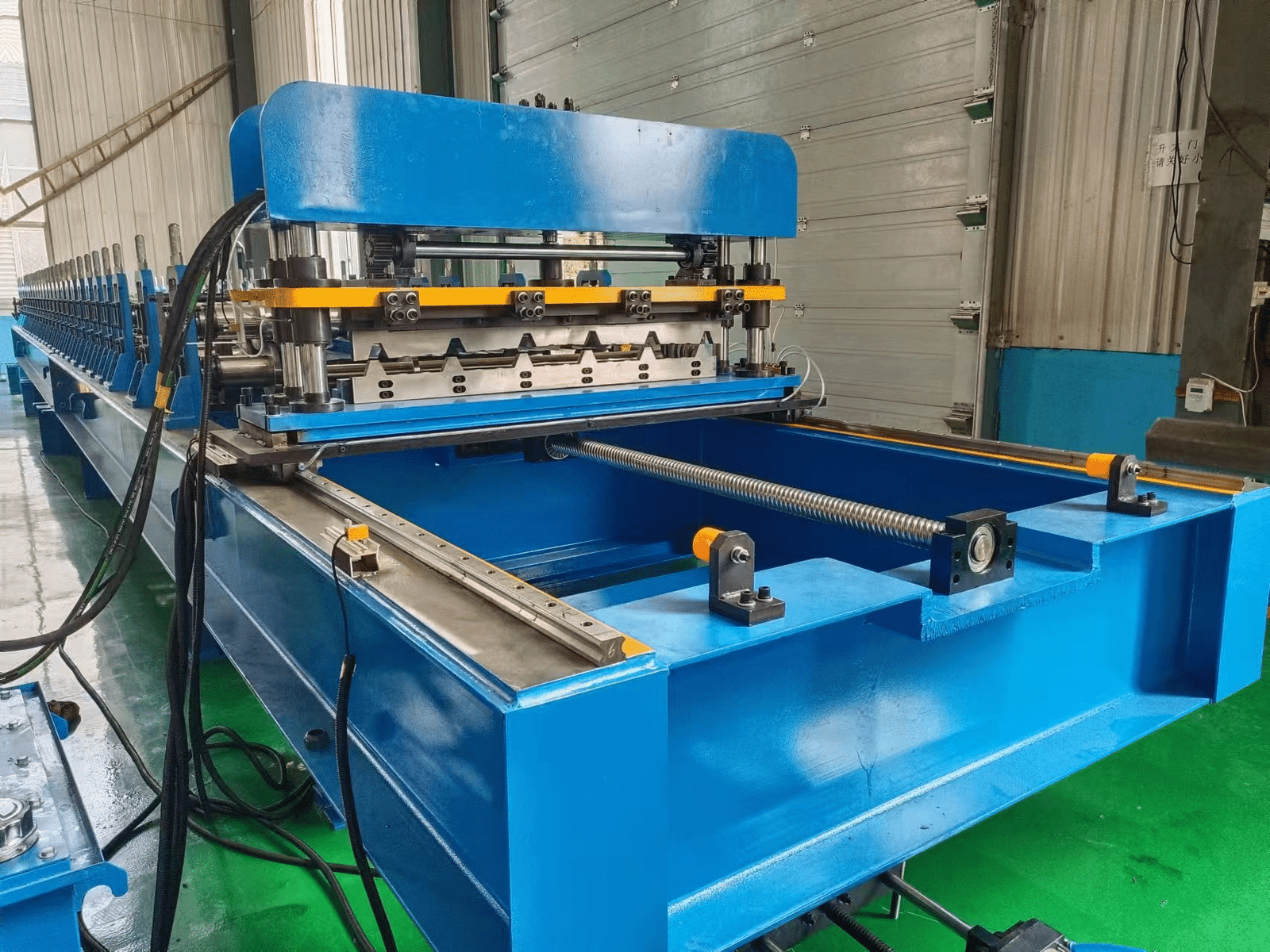

Another key feature of advanced trapezoidal roll forming machines is the servo-driven tracking shear. Unlike traditional mechanical cutters that require the line to stop during cutting, the servo shear works in sync with the moving sheet. With real-time position tracking and precise speed matching, the shear follows the sheet’s movement and completes the cut without halting the machine.

This dynamic cutting approach prevents energy loss from constant stopping and restarting, reduces mechanical stress on the equipment, and dramatically improves productivity. At the same time, it ensures clean, accurate cuts — a must-have for large-scale production lines that demand both speed and precision.

Enhancing Productivity and Product Quality

From the technical side, the combination of modular forming and pre-laminating offers unmatched production flexibility and product protection. Each profile can be fine-tuned on demand, and the protective film ensures the finished sheets look perfect right off the line — no need for extra polishing or repair. On the structural side, the archway frame and servo shear create a highly stable and efficient forming process, suitable for both custom projects and mass production.

In today’s roofing sheet manufacturing industry, investing in a modern trapezoidal roll forming machine is not just about faster production — it’s about smarter production. With a focus on flexibility, surface protection, and mechanical stability, these machines help manufacturers deliver top-quality products while keeping operational costs in check.
