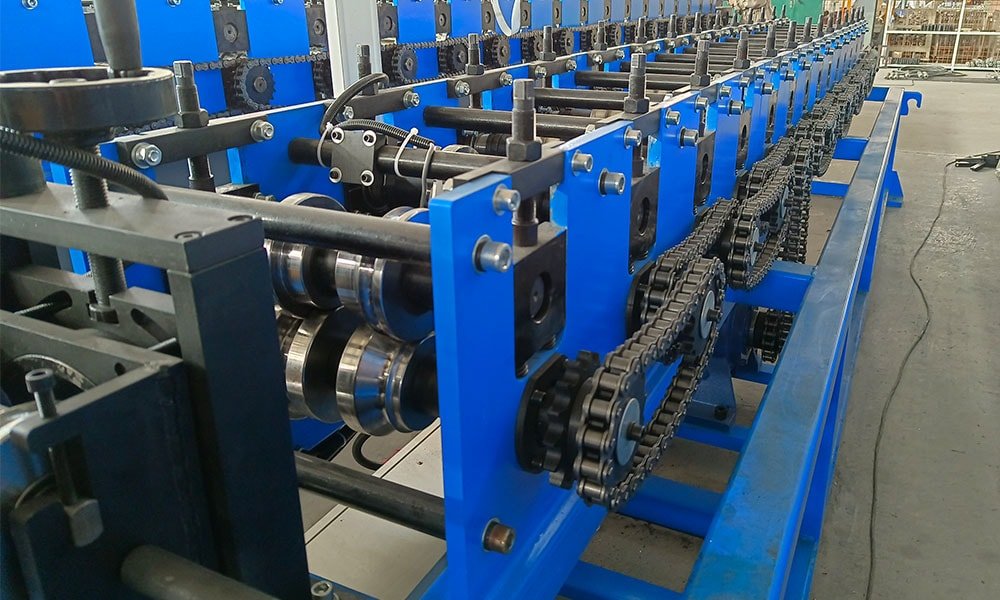

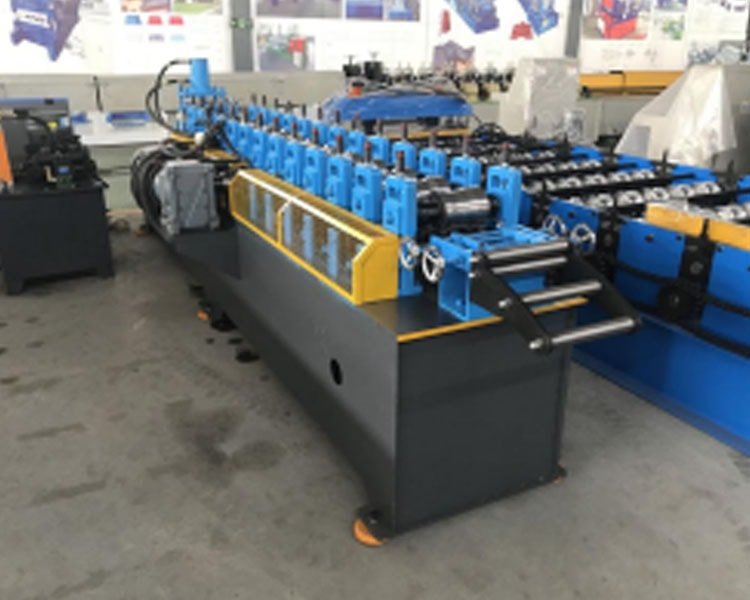

Roller Shutter Door Roll Forming Machine

Roller Shutter Door Roll Forming MachineRoller shutter door forming machine is extensively used in industrial and commercial fields, retail areas, airports, hotels, institutions, malls and shopping centers. GEIT GROUP roller shutter door roll forming machine is also designed for warehouses, dock doo

Type : GEIT-SD
Brand : ZTRFM
Price : $24900
Size : 6500*1000*1400

Roller Shutter Door Roll Forming Machine

Roller shutter door forming machine is extensively used in industrial and commercial fields, retail areas, airports, hotels, institutions, malls and shopping centers. GEIT GROUP roller shutter door roll forming machine is also designed for warehouses, dock doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms.

roller-shutter-door

1.Working flow of Shutter Door Roll Forming Machine

work-flow

Decoiler -- Main Roll Forming Machine--Embossing--Hydraulic Shearing--Collecting Product Table


2.Technical specification

2.1-Main Roll Forming Machine Weight: 5 tons

2.2-Main Roll Forming Machine Dimension: 6500*1000*1400mm

2.3-Machine Color: Blue Or Green Or As Customized

2.4-Work Voltage: 380V/50Hz/3Phases

2.5-Total Power: ~8.5kW

roller-shutter-doorroller-shutter-door

3.Components of Shutter Door Roll Forming Machine

Part 13T Manual Decoiler

Part 2Main Roll Forming Machine

Part 3PLC Control System

Part 4Hydraulic Station

Part 53M Collecting Product Table

4.Profile drawings

Profile drawing we can design as customer's requirements

profile-drawing

profile-drawing
