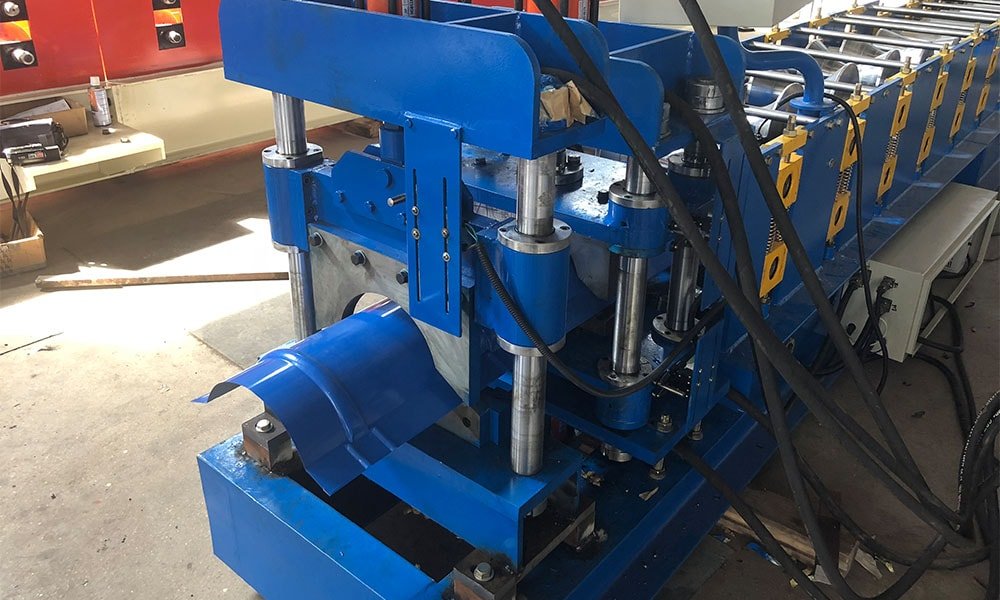

Ridge Cap Roll Forming Machine

The ridge cap on a metal roof is the trim that runs along the apex of the roof. The peak or ridge is the point at the top of the roof where both slopes meet.

The most important stage in enclosing a steel structure roof system is installing ridge tops. Metal roof ridge caps go along the peak of the roof, connecting the two adjoining steel roof panels on either side of the roof seam. To make metal roofing ridge cap we use metal roof ridge cap roll forming machine.Our ridge cap roll forming machine can produce different profiles as customer’s requirement.

1.Working flow of Ridge Cap Roll Forming Machine

2.Technical specification

Main Parameters

Raw material of the coil: PPGI, GI,PPGL, GL

Material thickness: 0.35-0.5mm

Feeding coils width: 520mm

Work voltage: 220V, 60Hz, 3Phase (or as your requirement)

3.Components of Ridge Cap Roll Forming Machine

part 13T Manual Decoiler

part 2Main roll forming machine

part 3PLC control station

part 4Hydraulic Station

part 5Products receiving table

4.Profile drawings

(we can design as customer's profile drawing)
