Standing seam roll forming machine

Standing seam roll forming machine produce metal roofing sheet with self-lock and fastener-hidden or concealed fixing system out of pre-painted steel.

Standing Seam Roofing Sheet is a fully interlocking roof system. Its unique design mechanical-lock design forms a weather-tight unit, and unlike some other types of panel metal roofs, no rivets or screws are exposed on the surface of the panels. It may be installed on new construction or applied over existing roofs. All trims and caps are designed to ensure an integrated weather-proof roof.

1.Working flow of standing seam roll forming machine

2.Technical specification

Technical Parameters

Raw material of the coil:G550

Material thickness:0.4-0.8mm

Work voltage:415V, 50Hz, 3Phase

Weight :Around 6 tons

Dimension:Around 8500*1200*1500 (length*width*height)

3.Components of standing seam roll forming machine

Part 15T Manual Decoiler

Part 2Main roll forming machine

Part 3PLC control station

Part 4Hydraulic Station

Part 5Cutting system

Part 6Products receiving table

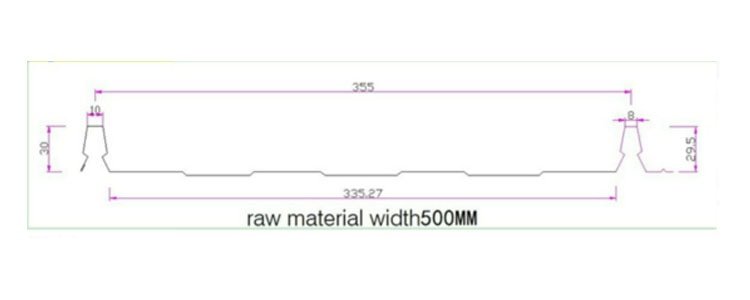

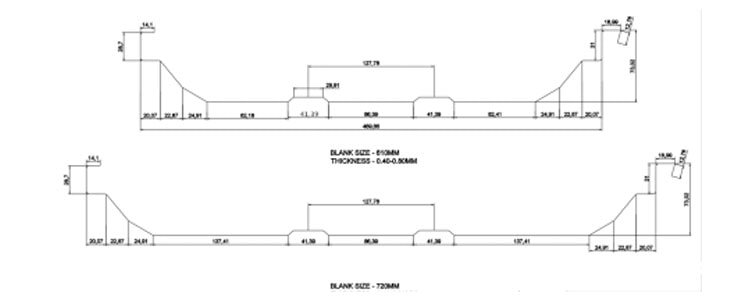

4.Profile drawings

Profile drawing(we can design as customer's profile drawing)
