High Configuration Corrugated Roofing Sheet Roll Forming Machine

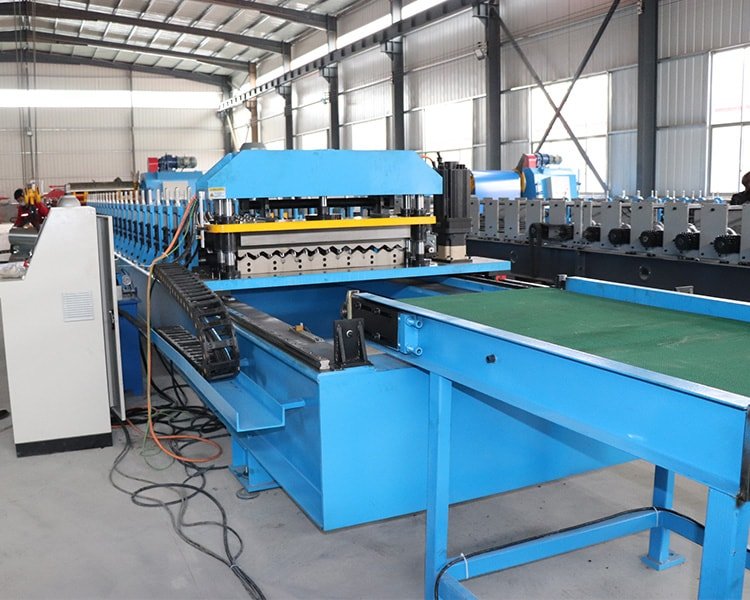

Corrugated Roofing Tile Making Machine produce the corrugated metal roofing and corrugated siding panels , which are the original metal roofing and siding panels and are a traditional staple in agricultural metal roofing applications.

GEIT GROUP can provide different configurations corrugated roll forming machine as customer’s requirements.

1.Working flow of Corrugated Roofing Sheet Roll Forming Machine

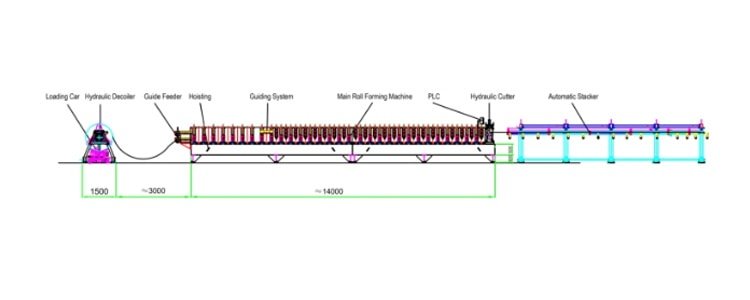

Decoiler--Main Roll Forming Machine--Hydraulic Shearing--Collecting Product Table

2.Technical specification

Decoiler Type: Hydraulic power

Working Type: Active Type

Loading Capacity: 10 Tons

Coil Inner Diameter: φ450-700mm(Adjustable)

Coil Outer Diameter: Max. φ1500mm

Coil Width: Max. 1250mm

Loading Power: 1.5 kW

Driving Power:3 kW

Hydraulic Power: 5.5 kW

With brake system

Uncoiling Speed: 0-60 m/min

Speed: 0-50 m/min ( 3000 tons/month )

Main Forming Motor Power: 18.5 kW, 460V/60Hz/3Phases

Machine Frame: 500# H-beam Steel Welded With Support

Feeding Device: Turnable Stainless Rollers

Machine Architecture: Vertical Arch Frame Construction, 30mm Thickness

Roller Shaft: φ85mm Solid Shafts, 45# Steel Tempering

Roller: GCr15 Quenched, Surface Hard Chromium Plating, HRC 60-62

3.Components of Corrugated Roofing Sheet Roll Forming Machine

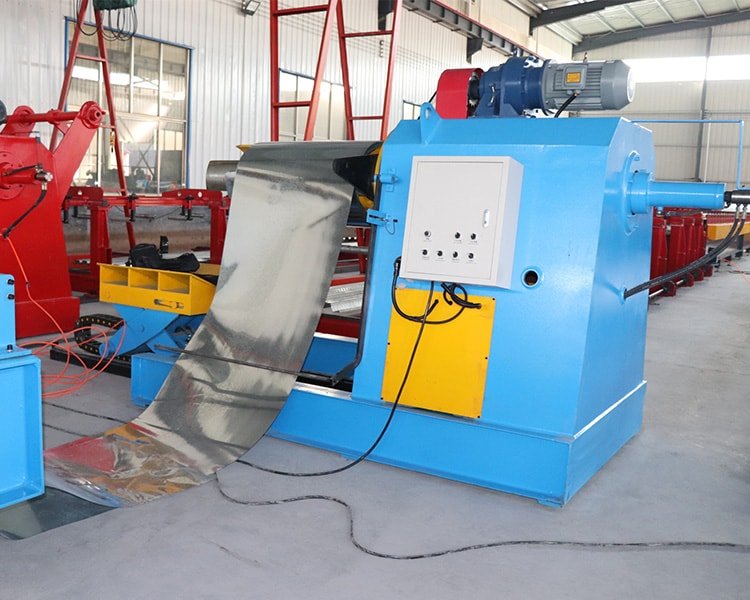

Part 1Decoiler

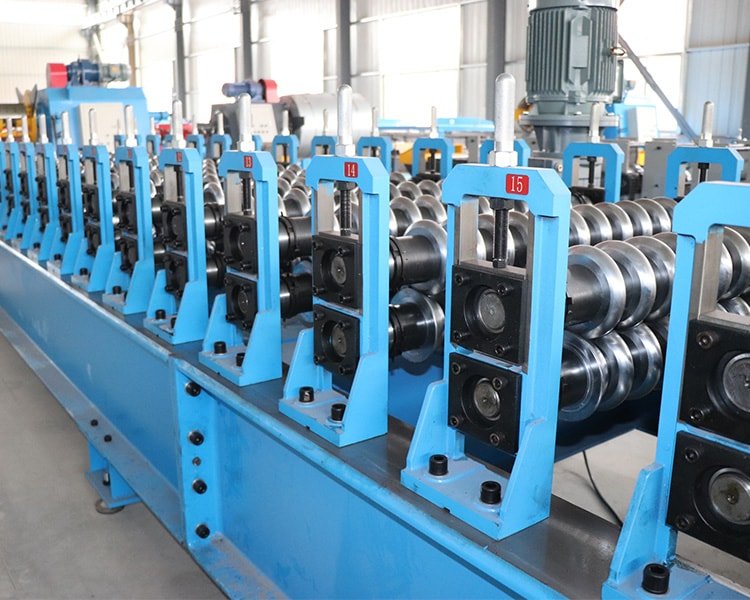

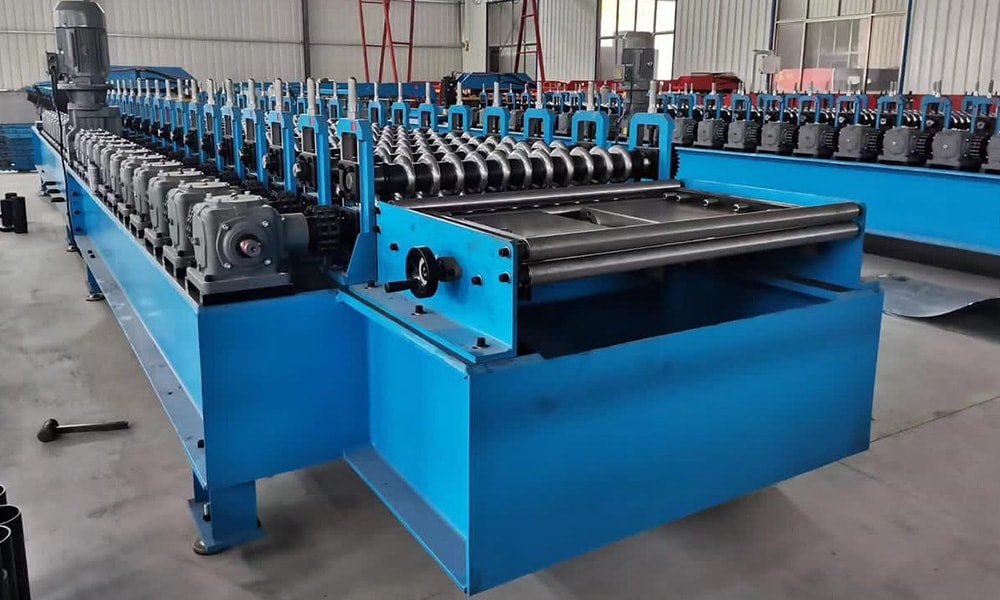

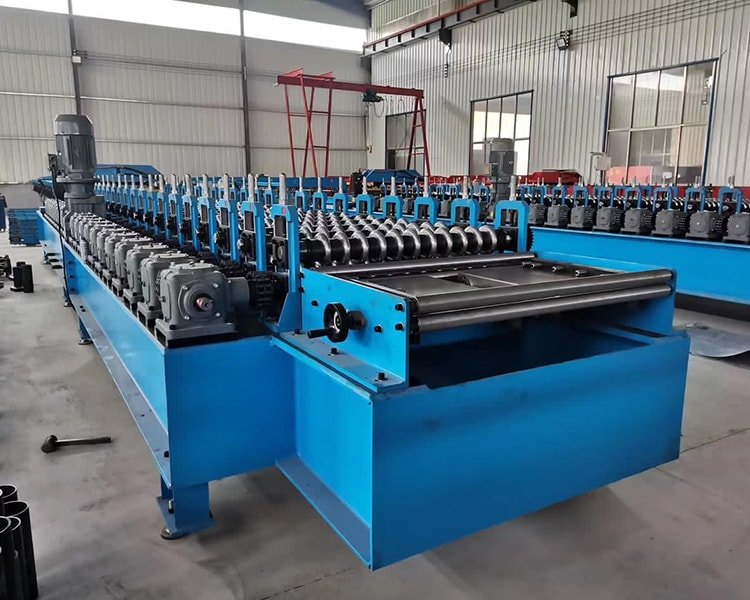

Part 2Main roll forming machine

Part 3PLC control station

Part 4Hydraulic station

Part 5Cutting system

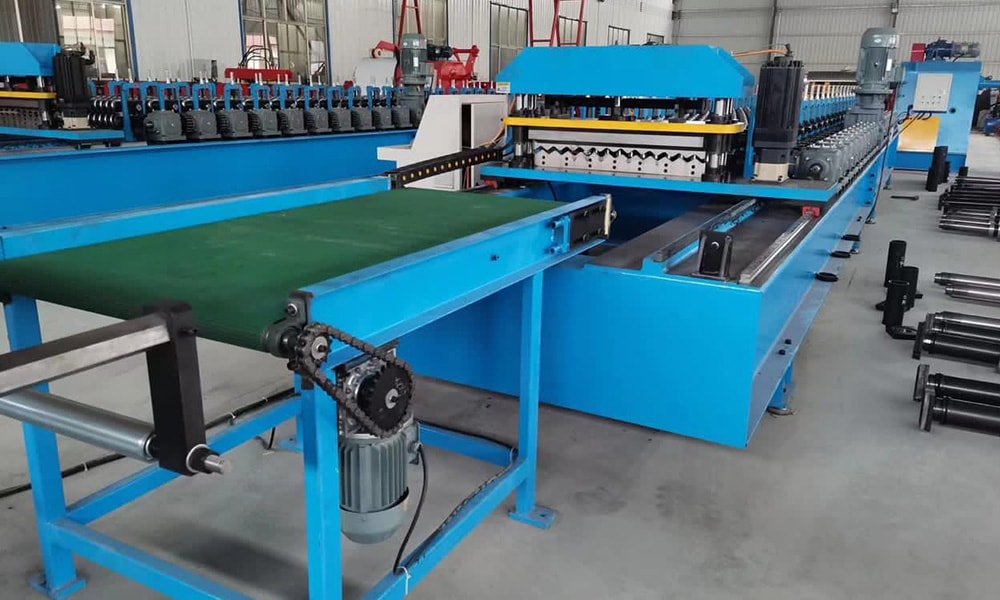

Part 6Products receiving table

4.Profile drawings

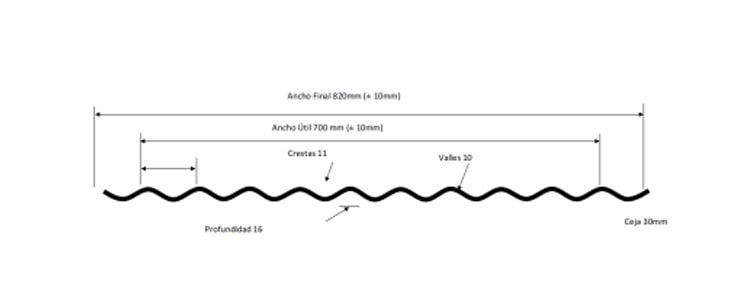

Profile drawing(we can design as customer's requirements)
