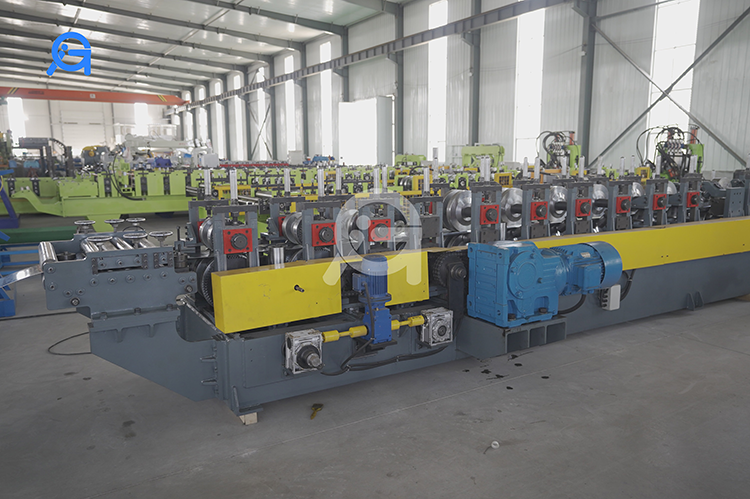

C purlin roll forming machine

C Purlin machine is a purlin channel roll former line, purlin machine can produce C purlin, Z purlin, U purlin, Sigma purlin and L angle purlin . C purlin roll forming machine is an equipment that produces C shape steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

This machine is fully automatic and easy to operate . It consists of one decoiler, sheet guiding equipment,roll forming section,PLC control system, Hydraulic cutting, collection table.

1.Working flow of C purlin roll forming machine

Uncoiling--feeding--Levelling-punching--forming--cutting-product collect

2.Technical specification

Raw material of the coil: GI  YS≤ 325Mpa

Material thickness: 3mm (max)

Effective width: 80-300mm

Feeding width (coil width): 172-480mm

Dimension: About 8200х1050х1600mm

Weight: About 8.8 tons

Work voltage: 380V, 50Hz, 3Phase(customized)

3.Profile drawings

Profile drawing we can design as customer's requirements.
